Parts listing:

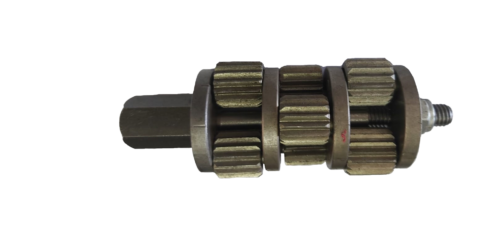

| 1. Complete TT tool head |
2. Right-hand cutter |
| 3. Straight cutter |
4. Left-hand cutter |
| 5. Top side plates |
6. Center side plates |
| 7. Bottom side plates |
8. Cutter pins |
| 9. Center spindle |
10. Nylock nuts |
- TT tool heads supplied in three, four and five rows
- Each row can be fitted with either three or four cutters
- The TT tool heads must be assembled with one of each right-hand, straight and left-hand cutters on each segment or row
- Female thread on tool either 3/8” or ½ BSW female
- The tool heads have cutters with a larger inside diameter than the outside diameter
- Of the cutter pins allowing the centrifugal force to penetrate the stubborn scale
- All cutters and pins are replaceable
- When ordering please specify the above information
Table illustrating sizes suitable for your application
| TT tool heads |
Tube ID inch |
Tube ID mm |
| TT00 |
1 3/16 |
30.16 |
| TT01 |
1 1/4 |
31.75 |
| TT02 |
1 5/16 |
33.34 |
| TT03 |
1 3/8 |
34.93 |
| TT04 |
1 7/16 |
36.51 |
| TT05 |
1 1/2 |
38.01 |
| TT06 |
1 9/16 |
39.69 |
| TT07 |
1 5/8 |
41.28 |
| TT08 |
1 11/16 |
42.86 |
| TT09 |
1 3/4 |
44.45 |
| TT10 |
1 7/8 |
47.63 |
| TT11 |
2 |
50.8 |
| TT12 |
2 1/16 |
52.39 |
